Weems & Plath Weems & Plath Q Tricolour/Anchor LED Navigation Light With Photodiode Black Housing

The Q Collection’s TriColour/Anchor LED Navigation Light is waterproof, exceeds 2 nautical miles of visibility and uses 5 times less power than comparable incandescent lights. Like those in the LX Collection, this light is made using solid aluminum construction and cast acrylic lens to make it last for years without yellowing. O-rings at the top, bottom, and middle of the light ensure a tight, waterproof enclosure. Additionally, the photodiode automatically turns the light on at dusk and off at dawn. Easy to install and no special switch is required. Perfect for use on sailboats up to 65 feet in length.

New to the Weems and Plath OGM Series, the Q Collection is the next generation of LED Navigation lights and incorporates the latest LED technology using a modular, modern design. All Q Collection lights are built to be upgradeable for future technology.

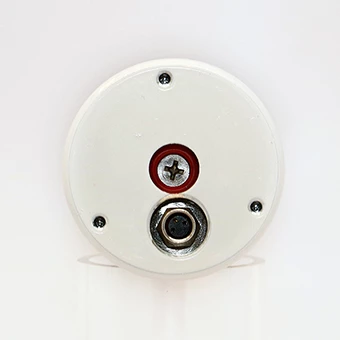

Includes a waterproof, quick-disconnect plug with 3-foot mating cable assembly featuring a PVC jacket and a base mounting bracket. Additional mounting brackets optional.

Features:

• Visibility: 2+NM
• Voltage Range: 4-48V DC
• Current Draw: 0.39 Amps at 12V DC for TriColour; 0.28 Amps at 12V DC for Anchor
• Power Consumption: 4.5 Watts
• Horizontal Viewing Angle: 112.5 degrees/ea for Port and Starboard (225 degrees total); 135 degrees for Stern; 360 degrees for Anchor
• Vertical Viewing Angle: +/- 36 degrees
• Wiring: 3-pin waterproof, quick-disconnect plug with 3-foot mating cable (3 wire)
• Housing Colour: Black
• Certifications: USCG 2NM, ABYC-A16, COLREGS ’72
• Construction: Solid Aluminum, UV Resistant Cast Acrylic
• Made in the USA
• LIFETIME Warranty ()

Specifications:

• Dimensions: 2′ (5 cm) Diameter x 3′ (7.6 cm) Height
• Weight: 0.5 lb (0.22 kg)
• UPC Code: 721002911865
• HTS Code:
