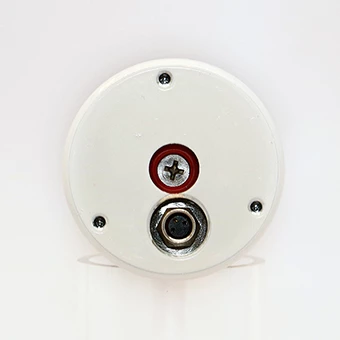

Weems & Plath Weems & Plath Q Bi-Color LED Nav And Multi-Purpose Light White

This unique Bi-Colour LED Nav and Multi-Purpose Light mounts on the bow of the boat to not only ensure proper Port (RED) and Starboard (GREEN) navigation lighting, but flip the switch and it also provides an extra source of white light to help illuminate the area, allowing you to see when docking, anchoring or picking up a mooring! Certified for power and sailing vessels up to 39 feet in length.

New to the Weems and Plath OGM Series, the Q Collection is the next generation of LED Navigation lights and incorporates the latest LED technology using a modular, modern design. All Q Collection lights are upgradeable, more efficient, and 20-30% brighter than LX Collection lights.

Includes a waterproof, quick-disconnect plug with 6-foot mating cable assembly featuring a PVC jacket. Mounting bracket sold separately.

Features:

• Visibility: 2+NM
• Voltage Range: 4-48V DC
• Current Draw: 0.28 Amps at 12V DC
• Power Consumption: 3.4 Watts
• Horizontal Viewing Angle: 112.5 degrees/ea for Port and Starboard (225 degrees total); 225 degrees for Multi-Purpose (white light)
• Vertical Viewing Angle: +/- 36 degrees
• Wiring: 3-pin waterproof, quick-disconnect plug with 6-foot mating cable (3 wire)
• Housing Colour: White
• Certifications: USCG 2NM, ABYC-A16, COLREGS ’72
• Construction: Solid Aluminum, UV Resistant Cast Acrylic
• Made in the USA
• Limited LIFETIME Warranty ()

Specifications:

• Dimensions: 2′ (5 cm) Diameter x 3′ (7.6 cm) Height
• Weight: 0.5 lb (0.22 kg)
• UPC Code: 721002911933
• HTS Code:
