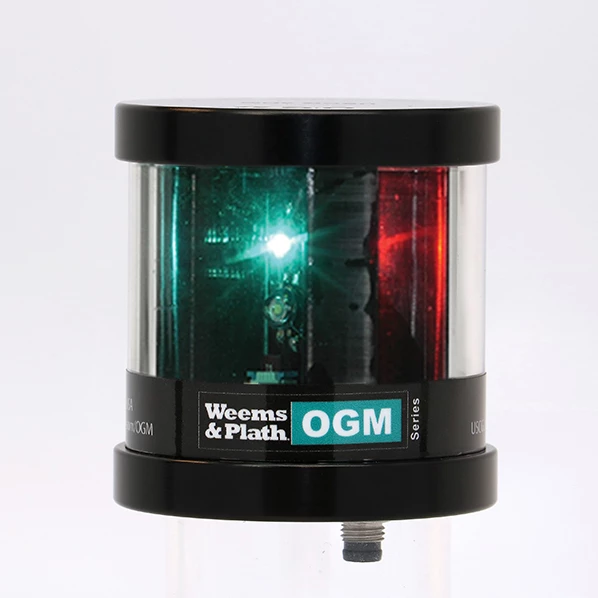

This LED TriColour/Anchor combination light is not only ocean-tested, rugged and waterproof, but it also exceeds 2 nautical miles of visibility and includes a photodiode to automatically turn the light on at dusk and off at dawn. It also uses 5 times less power than comparable incandescents! Certified for sailboats that are up to 65 feet in length.
U.S. Coast Guard approved and used by the USCG and on board other military vessels since 2004. The LX Collection of Weems and Plath OGM LED Navigation Lights was the first in the world to be USCG approved and has set the standard for all others to follow.
Includes a waterproof, quick-disconnect plug with 3-foot mating cable. Mounting Bracket and sold separately.
Features:
- Visibility: 2+NM
- Voltage Range: 9-30V DC
- Current Draw: ? 0.33 Amps at 12V DC
- Power Consumption: 4 Watts
- Horizontal Viewing Angle: 112.5 degrees/ea for Port and Starboard (225 degrees total); 360 degrees for Anchor
- Vertical Viewing Angle: +/- 36 degrees
- Wiring: 3-pin waterproof, quick-disconnect plug with 3-foot mating cable
- Certifications: USCG 2NM, ABYC-A16, COLREGS ’72
- Construction: Military Spec Anodized Aluminum, UV Resistant Cast Acrylic
- Made in the USA
- Limited LIFETIME Warranty ()
Specifications:
- Dimensions: 2.75′ (7 cm) Diameter x 2.75′ (7 cm) Height
- Weight: 0.60 lb (0.27 kg)
- UPC Code: 721002911766
- HTS Code:
