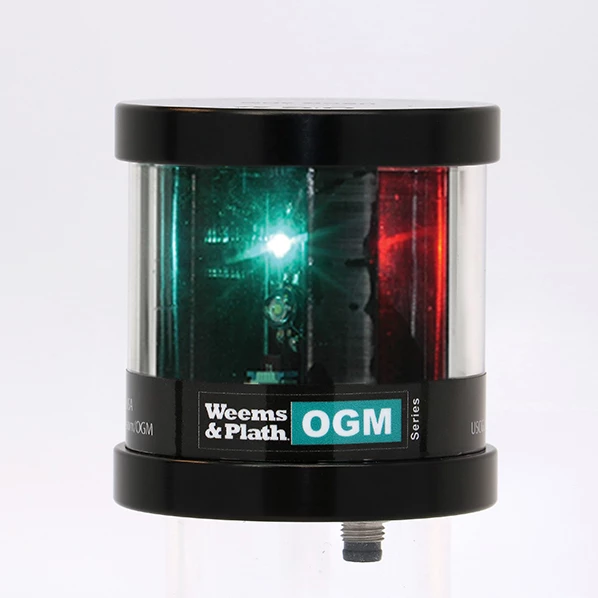

Weems & Plath Weems & Plath LX Tricolour/Anchor LED Navigation Light

This LED TriColour/Anchor combination light is not only ocean-tested, rugged and waterproof, but it also uses 5 times less power than comparable incandescents! The light is certified for sailboats up to 65 feet in length. For automatic day-night control, choose model  or .

U.S. Coast Guard approved and used by the USCG and on board other military vessels since 2004. The LX Collection of Weems and Plath OGM LED Navigation Lights was the first in the world to be USCG approved and has set the standard for all others to follow.

Includes a waterproof, quick-disconnect plug with 3-foot mating cable. Mounting Bracket and  sold separately.

Features:

• Visibility: 2+NM
• Voltage Range: 9-30V DC
• Current Draw: ? 0.33 Amps at 12V DC
• Power Consumption: 4 Watts
• Horizontal Viewing Angle: 112.5 degrees/ea for Port and Starboard (225 degrees total); 360 degrees for Anchor
• Vertical Viewing Angle: +/- 36 degrees
• Wiring: 3-pin waterproof, quick-disconnect plug with 3-foot mating cable (suitable for 2-wire connections; requires Reversing Switch)
• Certifications: USCG 2NM, ABYC-A16, COLREGS ’72
• Construction: Military Spec Anodized Aluminum, UV Resistant Cast Acrylic
• Made in the USA
• Limited LIFETIME Warranty ()

Specifications:

• Dimensions: 2.75′ (7 cm) Diameter x 2.75′ (7 cm) Height
• Weight: 0.60 lb (0.27 kg)
• UPC Code: 721002911759
• HTS Code:
