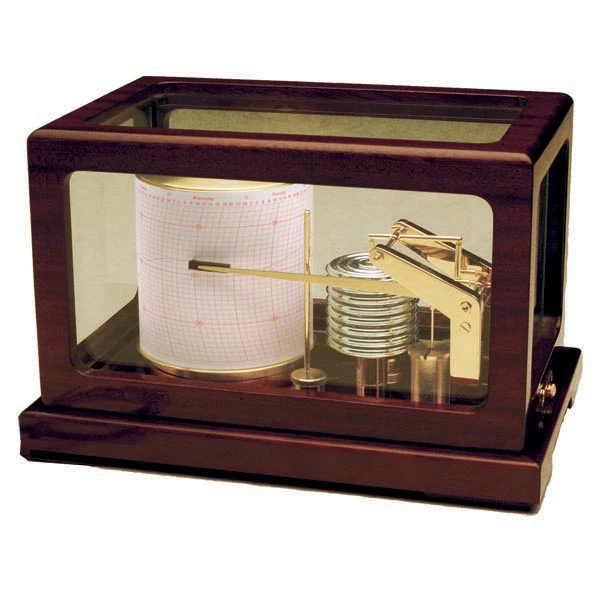

Weems & Plath Weems & Plath Dampened Deluxe Quartz Barograph

Keep precise records of barometric pressure readings with this
extraordinary German-made Dampened Deluxe Quartz Barograph. This
mechanical barograph with eight round diaphragms measures variation
in the air pressure and transfers the information very precisely
through a system of mechanical levers to the writing arm. The
battery operated quartz movement rotates the solid brass drum once
a week, requires no winding, and is more accurate than key-wound
movements. The conventional ink nib and messy ink bottle are
replaced by a convenient felt tip pen which lasts 6 to 9 months.
This barograph model includes a bottle of oil damping fluid for the
arm to avoid incorrect readings when on ships or yachts at sea. The
elegant mahogany and glass case is polished to a high luster finish
and is hinged for easy access to the movement for change of paper
and pen.

Features:

• Both inch and millibar charts are available
• Eight diaphragm bellows provide maximum sensitivity and
  precision
• Hinged mahogany case with glass sides provides easy access to
  chart drum
• Quartz movement requires no winding
• Chart duration: 7 days
• Included are: One-year supply of weekly inch charts (108), AA
  battery, one black felt tip pen (451) (lasts 6-9 months), Damping
  fluid (110)
• Millibar charts (107) available separately

Specifications:

• Length: 9.6 in (24.38 cm)
• Width: 6 in (15.24 cm)
• Height: 7 in (17.78 cm)
• Dimensions: Case dims: 11′ x 6 3/4′ x 6 1/2′ (279 x 171 x 165
  mm)Chart size: 3 5/8′ (92 mm)Chart range: 28.5 to 31′
• Weight: 6.8 lb (17.78 cm)
• UPC Code: 721002041043
• HTS Code: 9025.80.4000
