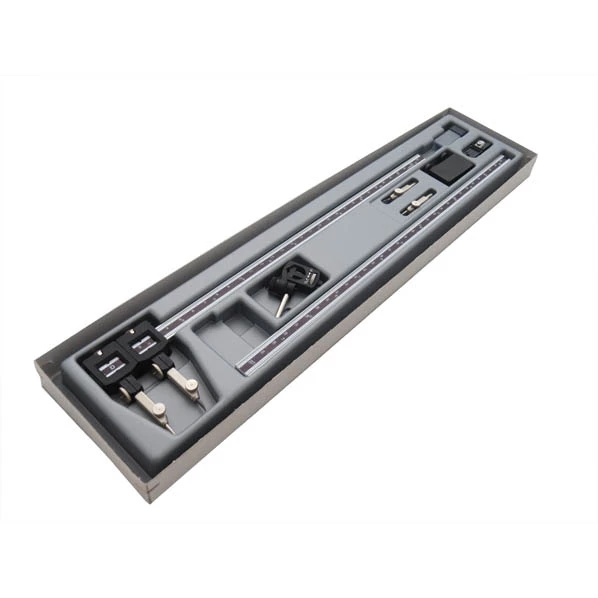

This aluminum channel beam compass, with graduations in both
inches and millimeters, includes two 13-inch beam bars and one
coupling. The maximum arc/ diameter that can be drawn with this
compass is 51.5 inches (140.97cm). This specialized compass can be
used to transcribe large circles/arcs, transfer measurements on
large charts, or technical drawings for wood or metalwork projects.
A molded storage tray holds all the components in place when not in
use. A 13-inch (33.02cm) Extension Bar (545330) enables the user to
extend the reach of the compass to a 64-inch (162.56cm) radius when
using all extension bars. (Available separately.)
Features:
- Includes: Two 13-inch aluminum beam bars
- Two slide assemblies with thumbwheel
- Cutting blade insert (mounts in slide assembly)
- Full-sized pencil/ pen adapter (mounts in slide assembly)
- Two spare points/ lead
- Two point holders
- Lead sharpener
- Molded storage tray
- Made in Germany
- Lifetime warranty
Specifications:
- Length: 13 in (33.02 cm)
- Width: 0.5 in (1.27 cm)
- Height: 3 in (7.62 cm)
- Dimensions: Box – 16 5/8 x 4 3/4/419.1 x 120.65 mm
- Weight: 0.15 lb (7.62 cm)
- UPC Code: 721002910899
- HTS Code: 9012.20.7000
