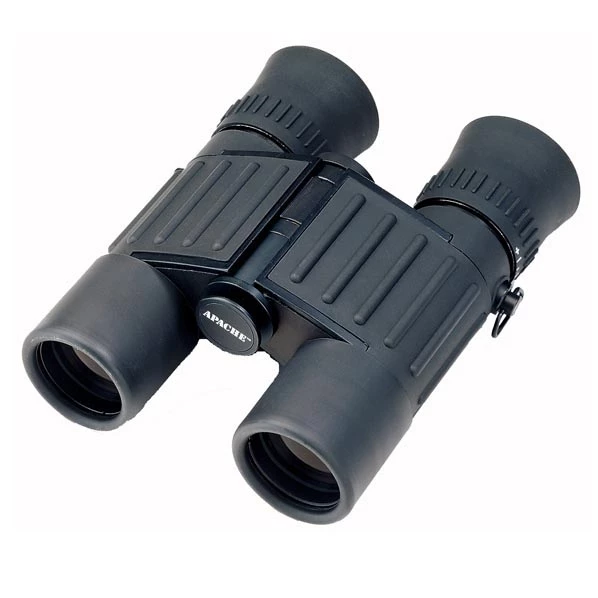

Weems & Plath Weems & Plath 7×28 Apache Military Binoculars With M-22 Reticle

Waterproof, shockproof and pocket-sized

The Weems & Plath 7×28 Apache Military Binoculars with M-22
Reticle are pocket size with individual eye focus built to
exceed the US military M24 specification. These rugged binoculars
are waterproof and shockproof, making them suitable for use in
harsh environments. The Apache performs very well in lowlight
conditions. They are hermetically sealed and nitrogen purged for
true waterproof and fog proof performance. The lens mil-scale
range-finding reticle makes them ideal for outdoor activities where
small, lightweight, and high quality binoculars are required.
Optional reticle (left view side) allows for easy range or distance
estimation. Exclusive SPARC (Stimulated Penetration Anti-Reflection
Coatings) optics eliminate internal glare and ghost images
resulting in nearly 95% light transmission at night or in low
light. The anti-corrosive, lightweight, aluminum body passes the
military specification drop/shock test from 6′ and withstands a
vibration test equal to 20 gravities of force.

Weems & Plath 7×28 Apache Military Binoculars with M-22
Reticle Features:

• Focusing System: Individual eyepiece focus
• Magnification: 7X
• Objective lens: 28mm
• Exit pupil: 4mm
• Eye relief: 15mm
• Prism type: BAK-7
• Field of view: 367 feet at 1,000 yards
• Light efficiency: 90%
• Rubber-armored and fold-down eye cups

Weems & Plath 7×28 Apache Military Binoculars with M-22
Reticle Specifications:

• Length: 4.1 in (10.41 cm)
• Width: 4.7 in (11.94 cm)
• Height: 1.5 in (3.81 cm)
• Dimensions: 5-3/4′ 5-1/4′ x 2′ (146 x 133 x 51 mm)
• Weight: 1 lb (3.81 cm)
• UPC Code: 721002002235
• HTS Code: 9005.10.0040

Product Data Sheet
